～Φ915mm（36.02inch）

• Table diameterΦ915mm（Φ800/Φ1000）
  Φ36.02inch（Φ31.50/Φ39.37）
• Max. turning diameterΦ1000㎜/Φ39.37inch
• Max. turning height700㎜/27.56inch
• Max. weight of workpiece1500kg/3300lbs

• Table diameterΦ915mm（Φ800/Φ1000）
  Φ36.02inch（Φ31.50/Φ39.37）
• Max. turning diameterΦ1000㎜/Φ39.37inch
• Max. turning height700㎜/27.56inch
• Max. weight of workpiece1500kg/3300lbs

• Table diameterΦ915mm
  Φ36.02inch
• Max. turning diameterΦ1000mm
  Φ39.37inch
• Max. turning height800mm/600mm
  （710mm/510mm）
  31.50inch/23.62inch
  （27.95inch/20.08inch）
• Max. weight of workpiece1500kg（1000kg）
  3300lbs（2200lbs）

※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).

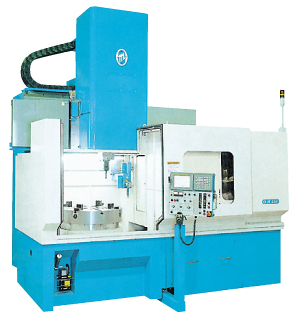

2-axis control CNC turning.

Combines high rigidity with high speed and high accuracy.

• Table diameterΦ915mm
  Φ36.02inch
• Max. turning diameterΦ1000mm
  Φ39.37inch
• Max. turning height750mm/550mm
  （660mm/460mm）
  29.53inch/21.65inch
  （25.98inch/18.11inch）
• Max. weight of workpiece1500kg（1000kg）
  3300lbs（2200lbs）

※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).

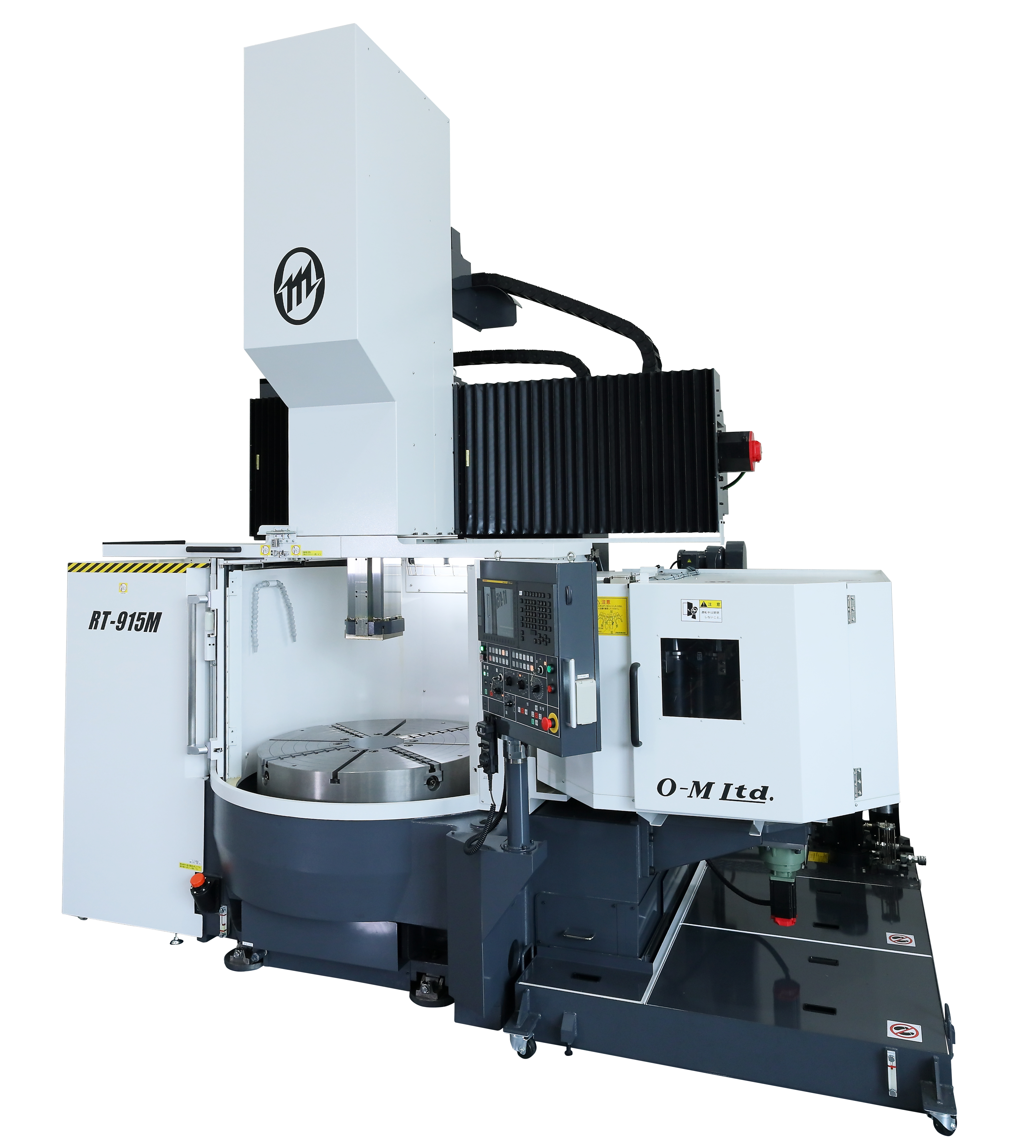

3-axis control CNC turning center

Milling function and table indexing (C axis) function, in addition to turning.

This enables a wide range of machining and centralization of machining processes.
