Vertical machines

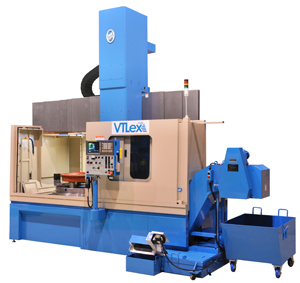

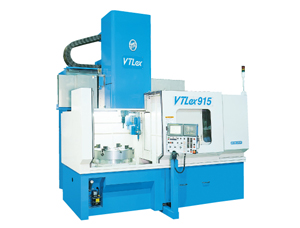

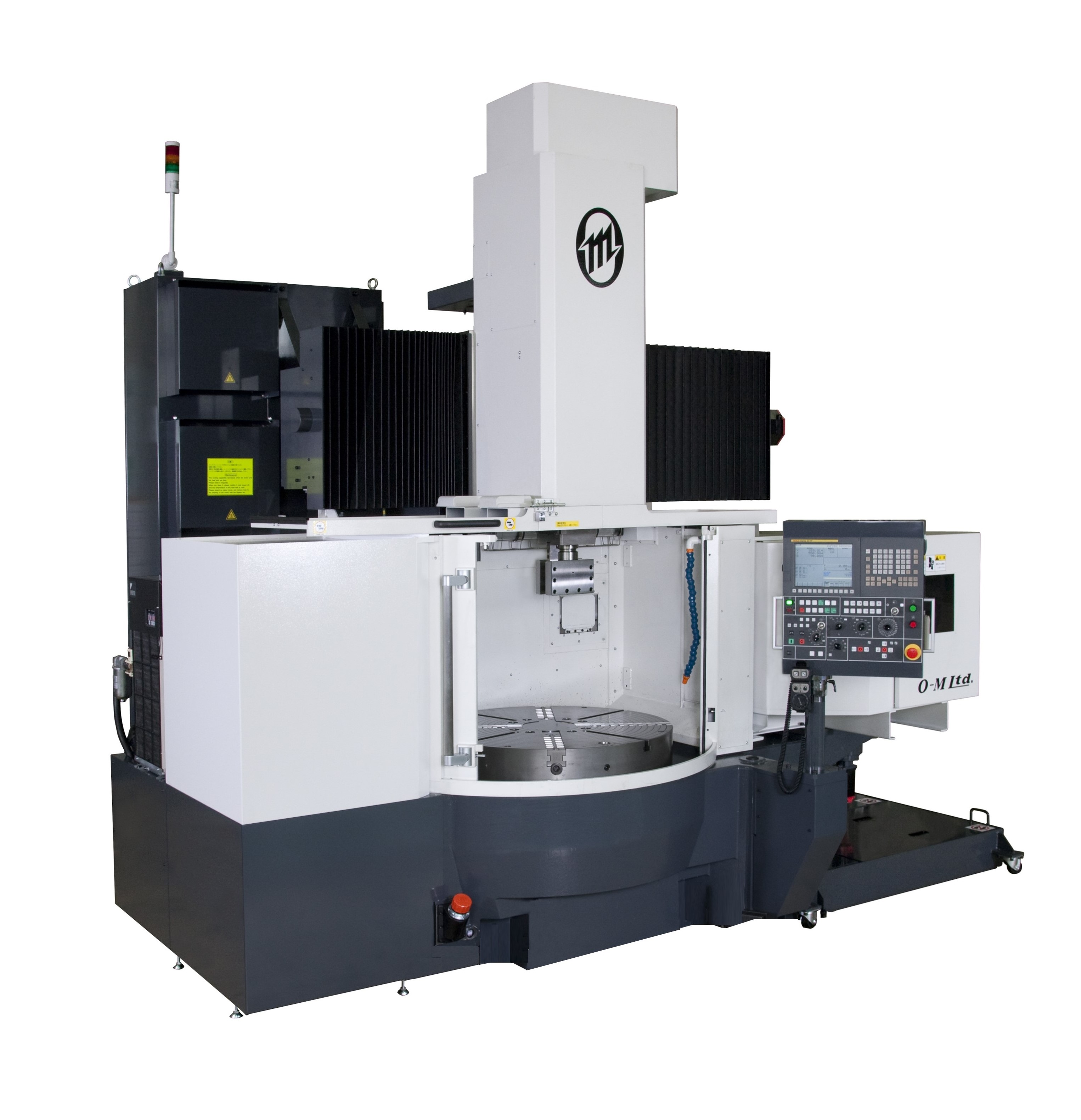

VTLex 915
- Track gaugeΦ915mm
Φ36.02inch - Wheel diameterΦ1000mm
Φ39.37inch - Shaft length800mm/600mm
(710mm/510mm)
31.50inch/23.62inch
(27.95inch/20.08inch) - Max. weight1500kg(1000kg)
3300lbs(2200lbs)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
2-axis control CNC turning.
Combines high rigidity with high speed and high accuracy.
VTLex 1100
- Track gaugeΦ1100mm
Φ43.31inch - Wheel diameterΦ1350mm(Φ1300mm)
Φ43.31inch(Φ51.18inch) - Shaft length800mm/600mm
(615mm/415mm)
31.5inch/23.62inch
(24.21inch/16.34inch) - Max. weight2000kg(1000kg)
4400lbs(2200lbs)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
2-axis control CNC turning.
Combines high rigidity with high speed and high accuracy.
VTLex 1250
- Track gaugeΦ1250mm(Φ1450mm)
Φ49.21inch(Φ57.09inch) - Wheel diameterΦ1600mm
Φ62.99inch - Shaft length1250mm(880mm)
49.21inch(34.65inch)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ). - Max. weight8000kg(4000kg)
17600lbs(8800lbs)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
2-axis control CNC turning.
Combines high rigidity with high speed and high accuracy.
VTLex 1600
- Track gaugeΦ1600mm(Φ1700mm)
Φ62.99inch(Φ66.93inch)
※ Numerals in parentheses"()"above are for optional specification. - Wheel diameterΦ2000mm
Φ78.74inch - Shaft length1600mm(1225mm)
62.99inch(48.23inch)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ). - Max. weight10000kg(5000kg)
22000lbs(11000lbs)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
2-axis control CNC turning.
Combines high rigidity with high speed and high accuracy.
VTLex 2000
- Track gaugeΦ2000mm
Φ78.74inch - Wheel diameterΦ2500mm
Φ98.43inch - Shaft length1815mm(1415mm)
71.46inch(55.71inch)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ). - Max. weight15000kg(7000kg)
33000lbs(15400lbs)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
2-axis control CNC turning.
Combines high rigidity with high speed and high accuracy.
VTLex 2500
- Track gaugeΦ2500mm
Φ98.43inch - Wheel diameterΦ3000mm
Φ118.11inch - Shaft length2215mm(1705mm)
87.21inch(67.13inch)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ). - Max. weight20000kg(9000kg)
44000lbs(19800lbs)
※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
2-axis control CNC turning.
Combines high rigidity with high speed and high accuracy.
VTLex 3000
- Track gaugeΦ3000mm
Φ118.11inch - Wheel diameterΦ3500mm
Φ137.80inch - Shaft length2215mm
87.20inch - Max. weight20000kg
44000lbs
2-axis control CNC turning.
Combines high rigidity with high speed and high accuracy.
RT-915

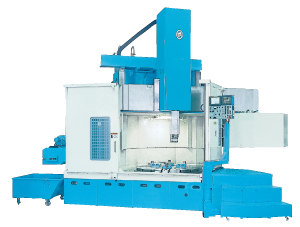

Neo-10EXⅡ
- Track gaugeΦ1100mm(Φ1200mm)
Φ43.3inch(Φ47.2inch) - Wheel diameterΦ1250mm
Φ49.2inch - Shaft length600mm/800mm
(500mm/700mm)
23.6inch/31.5inch
(19.7inch/27.6inch) - Max. weight3000kg
6600lbs
※ Numerals in parentheses"()"above are for APC specifications.

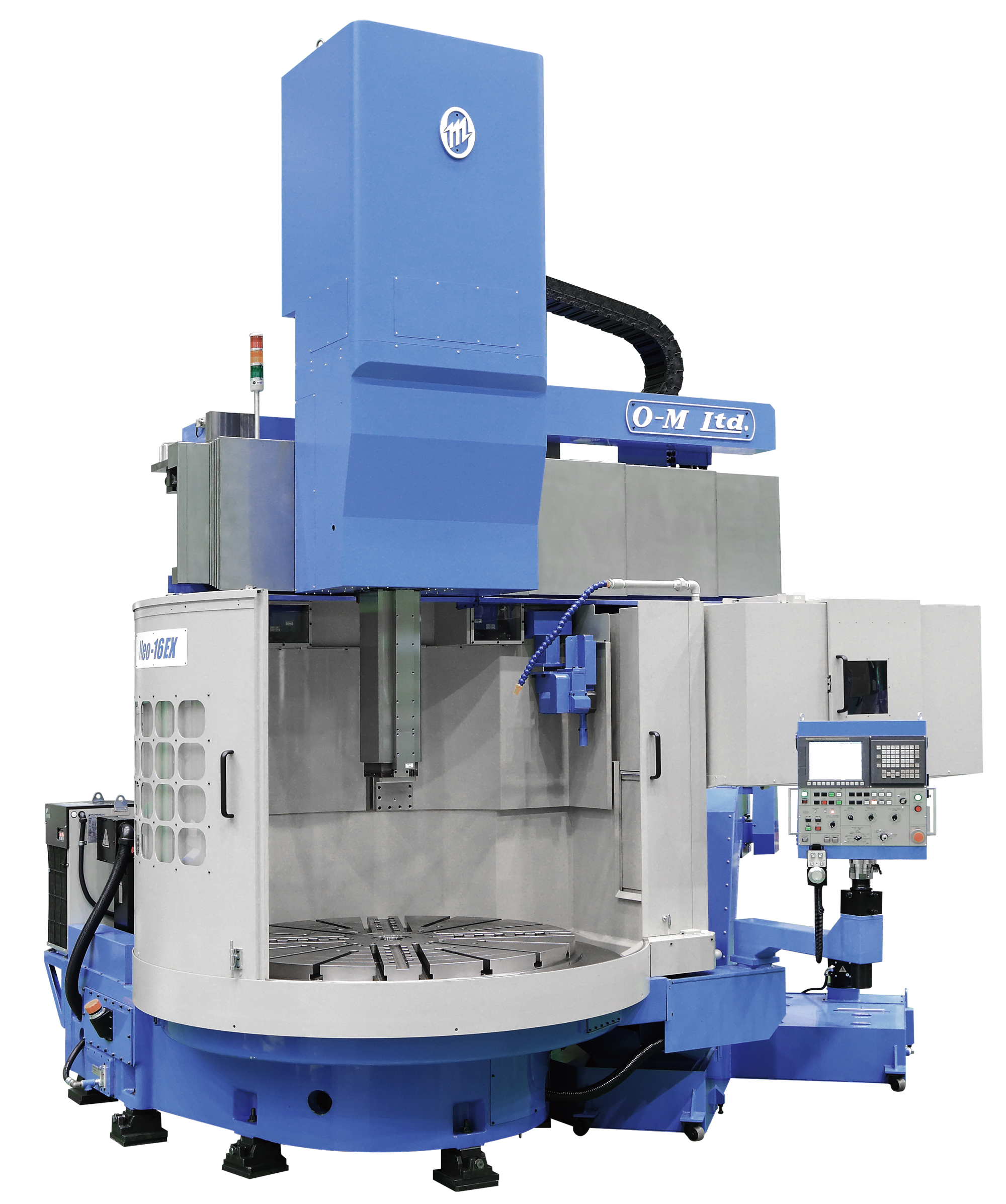

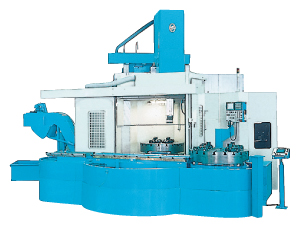

Neo-16EX
- Track gaugeΦ1600mm
Φ63.0inch - Wheel diameterΦ2000mm
Φ78.74inch - Shaft length1500mm(59.06inch)
- Max. weight8000kg
17600lbs
※ Numerals in parentheses"()"above are for APC specifications.

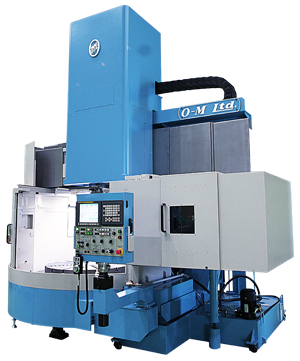

Neo-20EX
- Track gaugeΦ2000mm
(Φ78.74inch) - Wheel diameterΦ2500mm
Φ98.4inch - Shaft length2000mm
78.74inch - Max. weight15000kg
33000lbs
※ Numerals in parentheses"()"above are for APC specifications.
Neo-28EX
- Track gaugeΦ2800mm
(Φ2400mm・Φ2600mm)
Φ110.2inch
(φ94.5inch・φ102.4inch) - Wheel diameterΦ3000mm
Φ118.1inch - Shaft length2000mm(1550mm)
78.7inch(61.0inch) - Max. weight20000kg
44000lbs
※ Numerals in parentheses"()"above are for APC specifications.

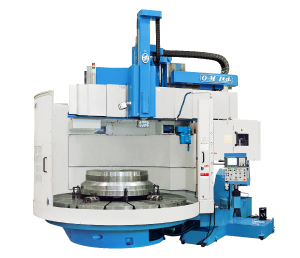

Neo-30/40DX
- Track gaugeΦ3000mm
Φ118.1inch - Wheel diameterΦ4000mm
Φ157.5inch - Shaft length2500mm(3000mm)
98.4inch(118.1inch) - Max. weight20000kg
44100lbs
Neo-40/50DX
- Track gaugeΦ4000mm
Φ157.5inch - Wheel diameterΦ5000mm
Φ196.9inch - Shaft length3000mm〔3500mm〕
118.1inch(137.8inch) - Max. weight20000kg
66150lbs
Neo-50/60DX
- Track gaugeΦ5000mm
Φ196.9inch - Wheel diameterΦ6000mm
Φ236.2inch - Shaft length3000mm〔3500mm〕
118.1inch(137.8inch) - Max. weight40000kg
88200lbs
Neo-60/70DX
- Track gaugeΦ6000mm
Φ236.2inch - Wheel diameterΦ7000mm
Φ275.6inch - Shaft length3000mm〔3500mm〕
118.1inch(137.8inch) - Max. weight50000kg
110300lbs

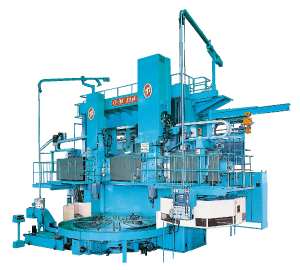

TMD Series(Double Column Vertical Boring and Turning Mills)
- Track gaugeΦ6000mm
Φ236.22inch
Large-sized vertical lathes, which comprise a system of combined components, offer ideal machine specifications for handling large parts at your company.
Combining components according to target workpieces and working conditions such as table diameter, swing diameter, turning height, table rotation speed, carrying capacity, and tool-slide type configures the ideal cost-effective machine to make your manufacturing line more powerful.

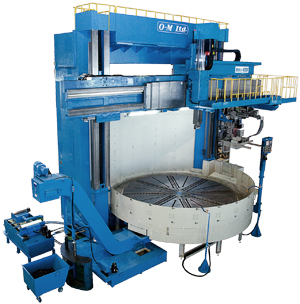

TMS2-20/40N Series(SE Type CNC Vertical Lathe)
- Track gaugeΦ2000mm
Φ78.74inch - Wheel diameterΦ4000mm
Φ157.5inch - Shaft length1600mm
63.0inch - Max. weight20000kg
44100lbs
Table size 2 to 6m. Machining dia, 4 to 14 m.
Single column traverse makes wide machining capacity.
TMS2-30/55N Series(SE Type CNC Vertical Lathe)
- Track gaugeΦ3000mm
Φ118.1inch - Wheel diameterΦ5500mm
Φ216.5inch - Shaft length2600mm
102.4inch - Max. weight30000kg
66150lbs
